Description

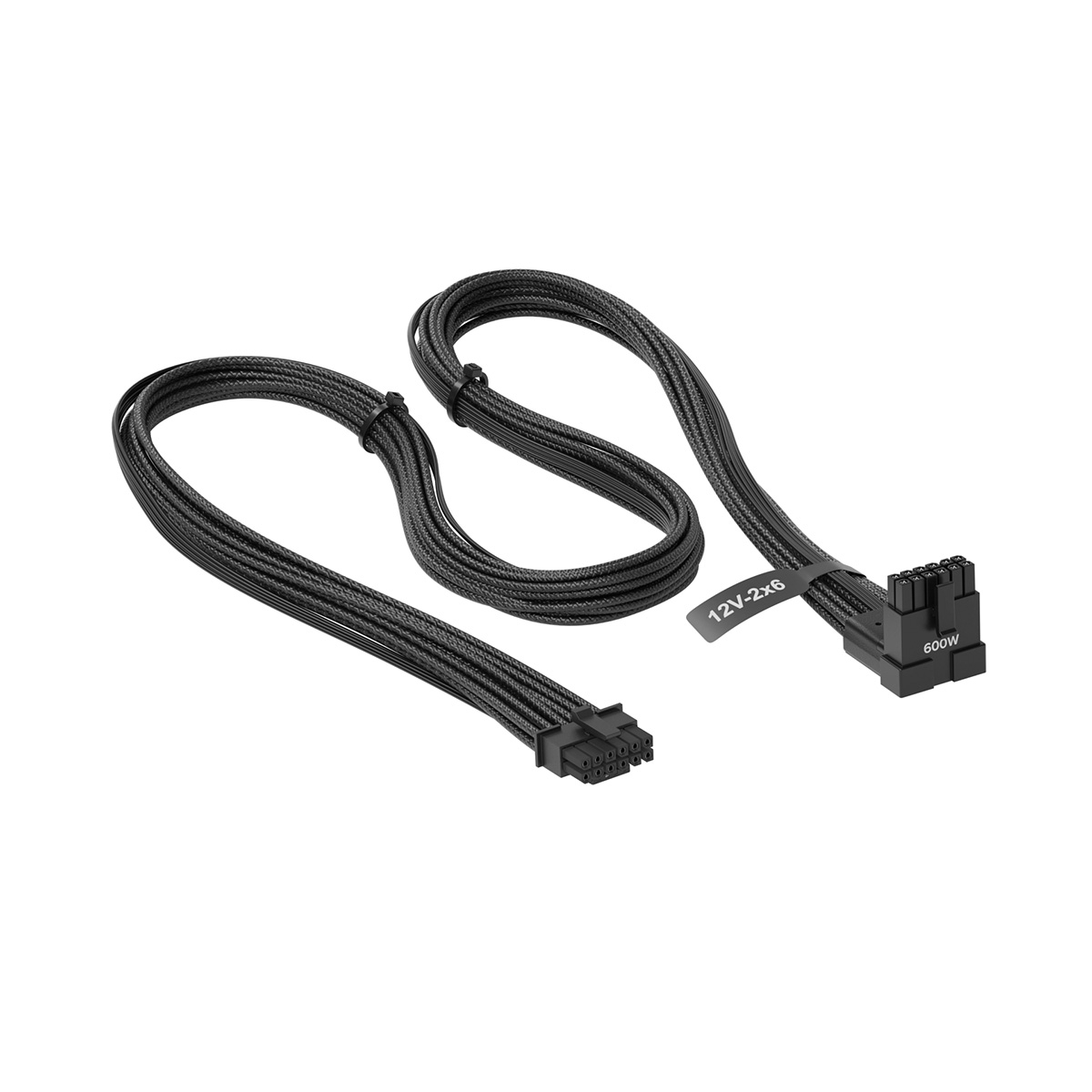

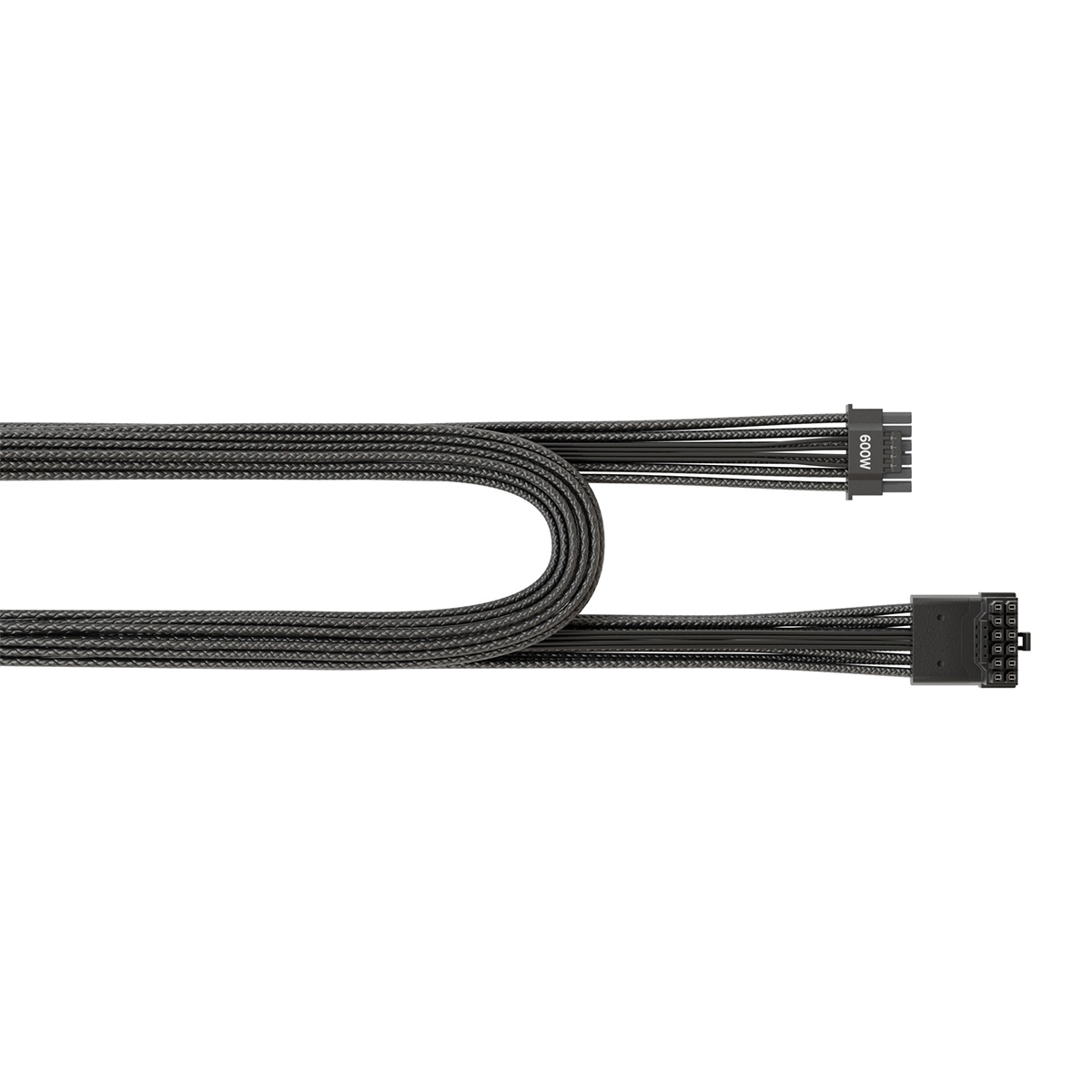

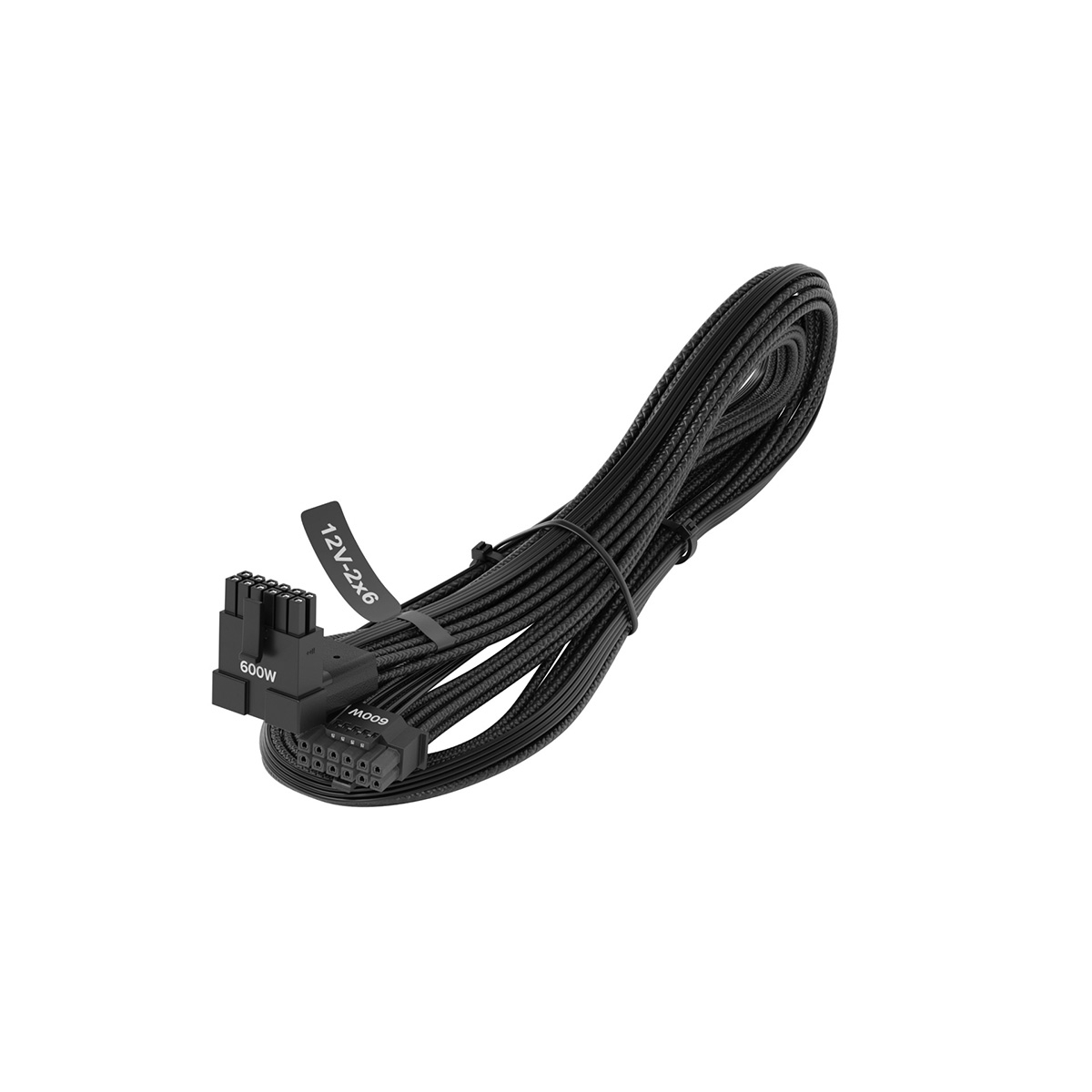

SEASONIC 90 12V-2X6 CABLE
Seasonic introduces the 12VHPWR 600 W graphics card cable to power high-performance GPU / graphic cards. This cable can be used with many of our current and past power supplies but with specific compatibility requirements. Please see below for important compatibility information.

A Single Connector To Power Them All
With the arrival of the new ATX 3 / PCIe 5 specifications, some graphic cards will now be powered by the new 12V-2×6 connector. Offering up to 600 W of power, the Seasonic 12V-2×6 cable has been crafted with high quality materials, such as high current terminal connectors and 16 AWG wires to ensure highest performance and safety in usage.

Power supply requirement: 650 W and above
The 12V-2×6 cable that is provided with your Seasonic power supply is rated at 600 W. This means the maximum allowable power pull from the power supply by the VGA can be up to 600 W. If your VGA is very power usage intensive, then please consider power supplies that are rated at 750 W and higher.
*Always follow the recommendations of your VGA card manufacturer for the minimum power requirement.

Power supply requirement: 2x PCIe Connectors
Your power supply must have 2x free PCIe connectors available where the Seasonic 12V-2×6’s 2x PCIe connectors can plug into.
BOTH 2×8 Pin PCIe connectors of the 12V-2×6 must be connected into the power supply.
*Always follow the recommendations of your VGA card manufacturer for the minimum power requirement.

Compatible series (650 W and higher)

  • Seasonic PRIME (ATX 3.0 models included)
  • VERTEX GX, PX and SAKURA
  • Seasonic FOCUS GX and PX (ATX 3.0 models included)
  • Seasonic FOCUS Plus Gold and Platinum
  • Seasonic Platinum, XP2 and XP3
  • Seasonic X-Series, KM3 and XM2

    • Not Compatible series

  • Any power supplies rated under 650 W
  • FOCUS Gold & FOCUS GM – These power supplies have only 1x PCIe connector available and therefore cannot work with the Seasonic 12V-2×6 600 W cable.

    • Specifications

  • Connectors: 1x 12V-2×6 Straight to 1x 90 12V-2×6 – High Current Terminal connectors
  • Gauge: 16 AWG
  • Length: 700 mm
  • Warranty: 2 Years
  • Color: Black
  • Connector(s) per cable: 1
  • Total Length (mm): 700
  • Number(s) of cable(s) included: 1

    • Specification

    Weight 0.5000 kg
    Dimensions 21.0000 × 14.0000 × 7.0000 cm
